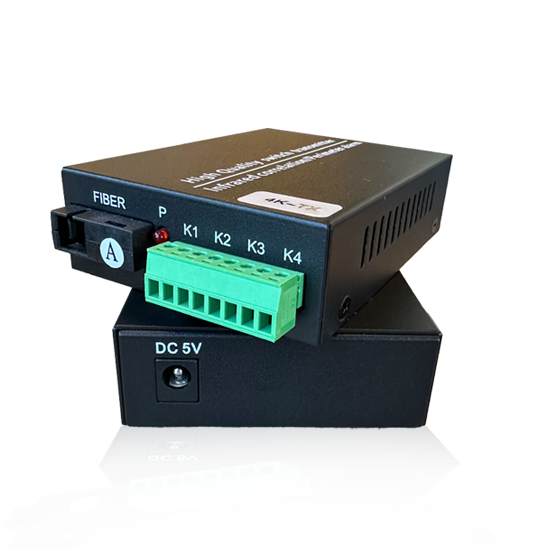

Description The Media Converter – 4 Channel Contact Closure to SC/UPC Single Mode Simplex Fiber (Pair) is designed to facilitate the seamless integration of contact closure signals over a single mode fiber optic link. This converter is ideal for applications where reliable, real-time transmission of contact closure events is required, such as in security, industrial automation, and remote monitoring systems. Key Features: 4 Channel Contact Closure Support: Each unit supports the transmission and reception of four independent contact closure signals. Capable of transmitting contact status over long distances without signal degradation. Fiber Optic Connectivity: Utilizes SC/UPC connectors for single mode simplex fiber. Supports transmission distances up to 20 km, depending on the quality of the fiber and environmental conditions. Reliable Performance: Ensures high-quality, noise-immune transmission of contact closure signals. Operates in environments with high electromagnetic interference (EMI). Plug-and-Play Design: Easy installation with no configuration required. LED indicators for power, link, and individual channel status provide easy monitoring and troubleshooting. Compact and Durable: Housed in a rugged, compact enclosure suitable for various installation environments. Industrial-grade components ensure long-term reliability and performance. Technical Specifications: Input/Output Channels: 4 contact closure inputs, 4 contact closure outputs Connector Type: SC/UPC Fiber Type: Single mode Wavelength: 1310 nm for transmission, 1550 nm for reception Transmission Distance: Up to 20 km Optical Budget: Typically 17 dB Power Supply: 12V DC, 1A Operating Temperature: -20°C to 70°C (-4°F to 158°F) Humidity: 0% to 95% non-condensing Dimensions: 105mm x 105mm x 30mm (L x W x H) Weight: 0.5 kg per unit Compliance: CE, FCC Application Scenarios: Security Systems: Connect door sensors, alarm panels, or other security devices over long distances. Ensure immediate response to security events without interference. Industrial Automation: Transmit control signals from PLCs to remote actuators or sensors in manufacturing environments. Enhance operational efficiency with real-time signal transmission. Remote Monitoring: Extend the reach of environmental monitoring systems by transmitting sensor status from remote locations. Maintain the integrity of monitoring signals over challenging distances. Installation and Usage: Setup: Connect the contact closure inputs and outputs to the corresponding devices. Use SC/UPC single mode fiber to connect the transmitter and receiver units. Power On: Connect the power supply to each unit. Ensure that the LED indicators for power, link, and channels are functioning correctly. Testing: Verify the transmission by triggering the contact closures and observing the corresponding outputs on the receiver unit. Maintenance: Regularly check the fiber connections and ensure they are clean and secure. Monitor the LED indicators for any signs of signal loss or power issues. Package Contents: 1 x Transmitter Unit 1 x Receiver Unit 2 x Power Adapters (12V DC, 1A) 1 x User Manual Mounting brackets and screws The Media Converter – 4 Channel Contact Closure to SC/UPC Single Mode Simplex Fiber (Pair) is the perfect solution for extending the reach of contact closure signals with high reliability and performance, making it a valuable addition to any fiber optic networking setup.
