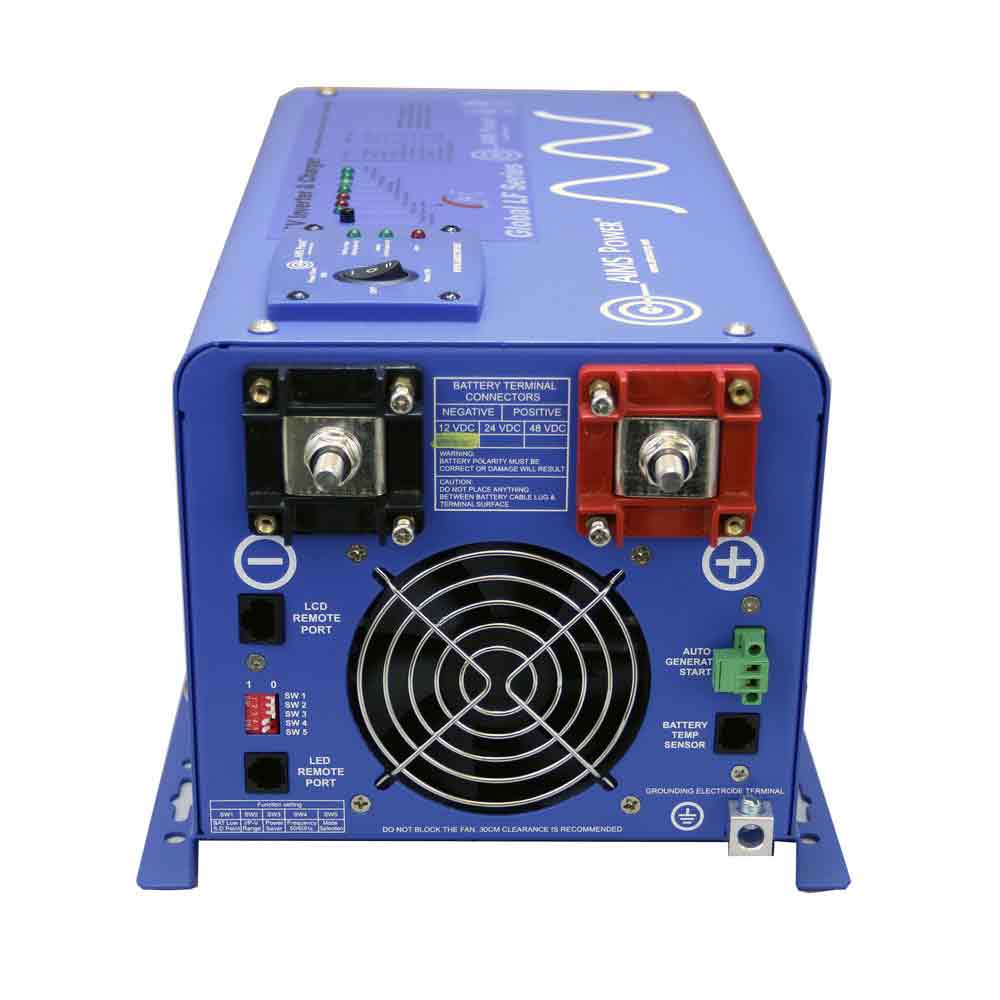

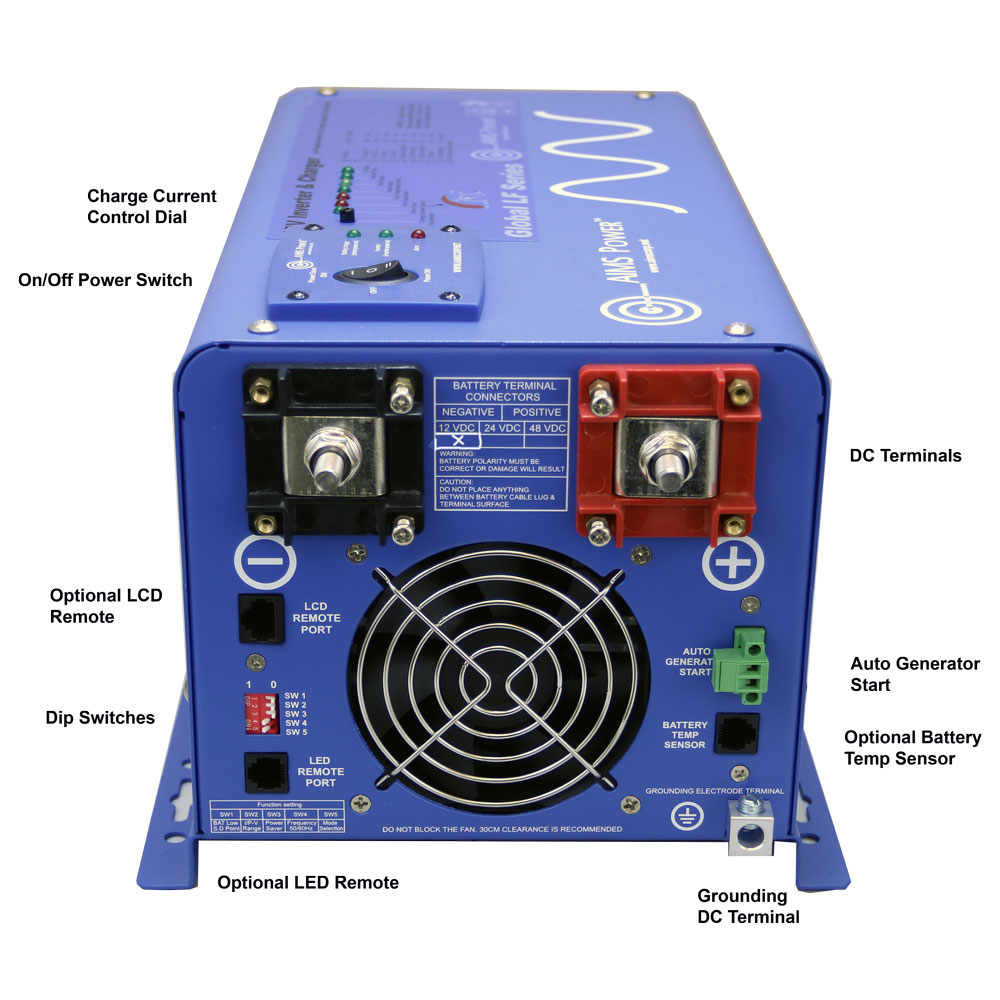

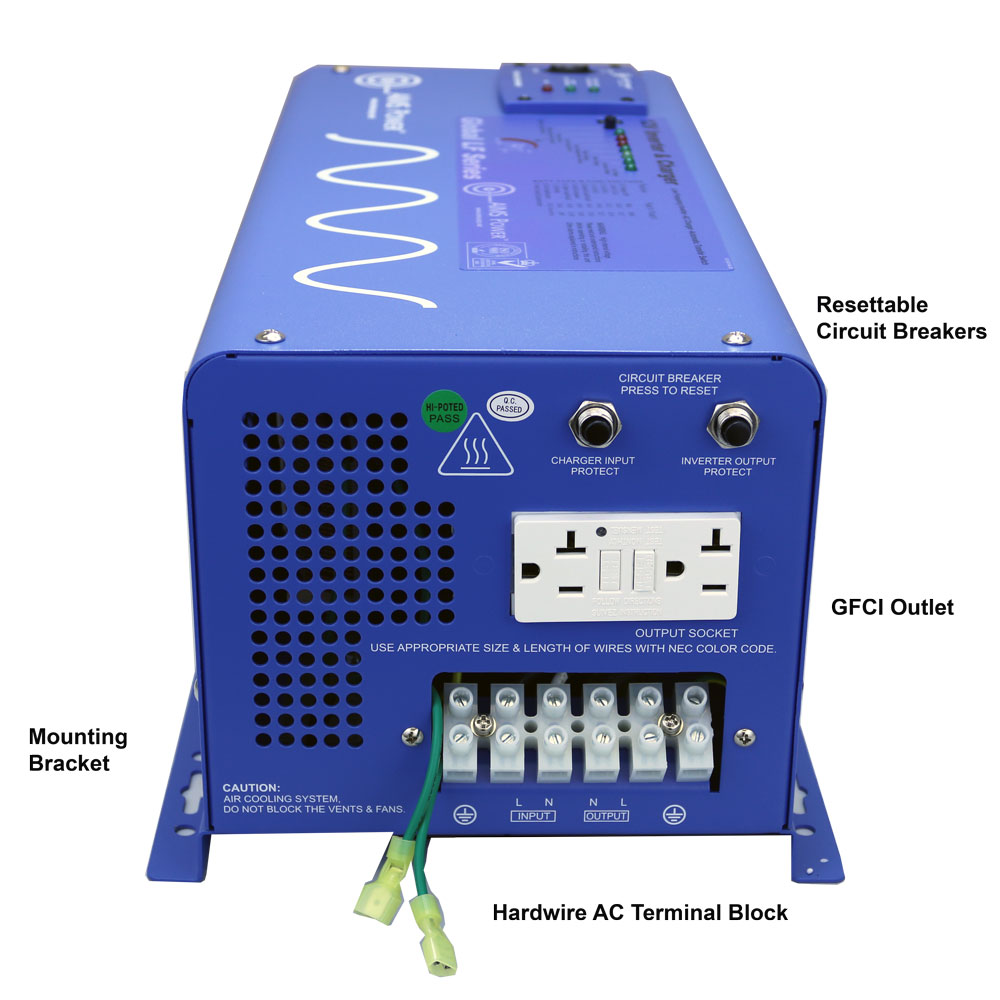

Description Overview The AIMS 1500 watt pure sine inverter charger is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. The powerful battery charger of this inverter charger is capable of 120 volts at 50 amps, and with power factor corrected, it uses 20-30% less energy from AC input than a standard charger, avoiding nuisance breaker trips or generator overloads. In response to the increasing demand of more advance battery charging, this model is equipped with Batter Temperature Sensing for increased charging precision. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer (if running more than 1500 watts often, we recommend purchasing a larger inverter). The transformers have been consistently improved for years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionally making it ideal to work in either backup power or renewable energy applications. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low. , Features Features: 1500 watt low frequency inverter 4500 watt surge for 20 seconds 300% surge capability Inverter, charger and transfer switch Auto generator start feature AC input cable GFCI outlet – 15 A Marine coated and protected Multi stage smart charger 50 A charges gel, AGM, lead and lithium LiFePO4 Remote panel available Auto frequency 10msec typical transfer time Optional 25W power save mode 7 battery type settings for charger Includes a one year warranty from date on invoice , Video , Description 1500 WATT PURE SINE INVERTER CHARGER 12 VDC to 120 VAC Output Specifications: Continuous output power: 1500 Watt Surge rating: 4500 Watt (20 seconds) Output waveform: pure sine Output terminal breaker – 20 A GFCI breaker – 20A Output voltage: 120 VAC Nominal efficiency: >88% (peak) Line mode efficiency: >95% Output frequency: 50Hz /- 0.3Hz / 60Hz /- 0.3Hz Typical transfer time: 10ms (max) THD: < 10% DC Input Specifications: Nominal input voltage: 12.0 VDC Minimum start voltage: 10.0 VDC Low battery alarm: 10.5VDC-11.0 VDC Low battery trip: 10.0 VDC-10.5 VDC High voltage alarm: 16.0 VDC Low battery voltage restart: 13.3 VDC Input / charger breaker – 20 A Idle consumption: 13.5 W Power saver mode idle consumption: 8 W Charger Specifications: Output voltage: depends on battery type Charger rate: 50A Over charge protection shutdown: 15.7V Selectable charge setting based on battery type Adjustable charge current off-20%-100% Four stage smart charger Transfer Switch Specifications: 20 amp automatic transfer load 10 ms (max) Dimensions Unit weight: 37.5 lbs. Unit size L x W x H: 14.1 x 8.74 x 7.10 inches Shipping weight: 42 lbs. Shipping size L x W x H: 20.75 x 12.75 x 12.5 inches Includes a one year warranty from date of purchase. 1500 WATT PURE SINE INVERTER CHARGER 12 VDC to 120 VAC Download the manual AIMS Power 1500 Watt Inverter Charger – PICOGLF15W12V120VR Please Contact Us Today! , Additional information Weight 42 lbs ,
